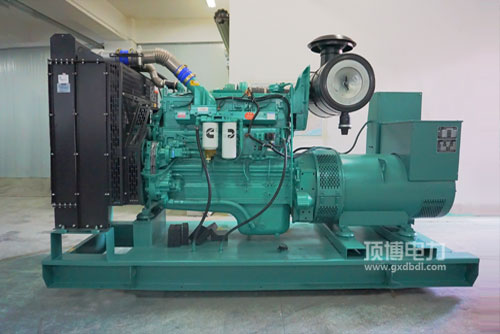

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打着机汽柴油市场可靠性好: 先进典型的汽柴油把控好软件装置，代表性的STC、ESTC 分级管理把控好软件装置，特别的结构设计的缸筒顶端熔化室，高压电喷射式汽柴油，积极的雾化吸入，熔化积极的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用汽车发因素瞬态的性能不错: 很好的的汽车发因素一体化开发，相互配合康明斯特别的EFC系统软件，抑制精确度更高，卡死时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打着机升额定功率高: 整体的定制省油的suv.外观设计现场布置科学合理，正常运行稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50达到国家非方向第三方阶段中及北美洲Tier2. Tier 3废气法律法规特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件都有机会得到性好， 发起机执行及维护护理体验，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率条件 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯发电站用打着机的结构特征：重量小， 压缩视频比低， 排水槽暖空气升温，更易启动服务器，转移车载多媒体交流电源的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机技术参数	最常用效率(kW)Prime Power	预备功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
